PowerTAP Modular Systems

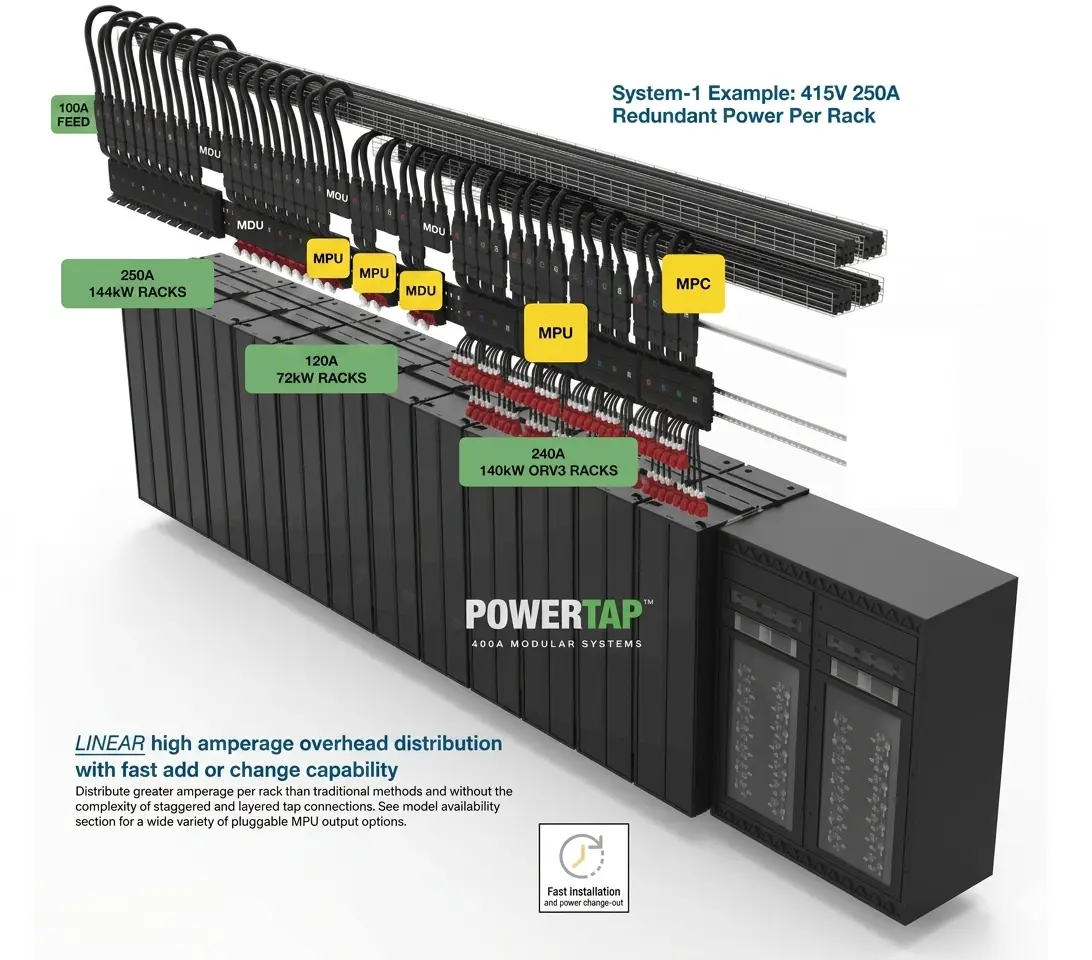

Simplified overhead power distribution from RPP to IT active gear

Reliably distribute up to 400A redundant from the remote power panel (RPP) to each active gear rack. PowerTAP is an overhead power distribution system
that organizes high amperage feeds in a single linear row for easier and more organized connection. PowerTAP modular power systems are comprised of
just two components: Modular Power Cables (MPCs) and Modular Power Units (MPUs). PowerTAP allows rapid low-cost deployment of a high amperage
system with the flexibility for changing power at the rack. Combine with PowerLOK rPDUs, now up to 200A, that are built in an automated facility in the USA.

Power options to 400A redundant for each rack location

PowerTAP MPUs are pluggable devices with a wide variety of outputs. Up to 4 units can be placed in a single row at each rack location.

  • Modular power to 250A or 400A per rack
  • Install or swap-out power in minutes.
  • Less than half the weight of traditional overhead systems.
  • Made in USA, TAA compliant, UL62368-1, CSA C22.2.
Gateway-ISO
Systems & Output
34.4 kW to the rack
CPU-UPDATEDS

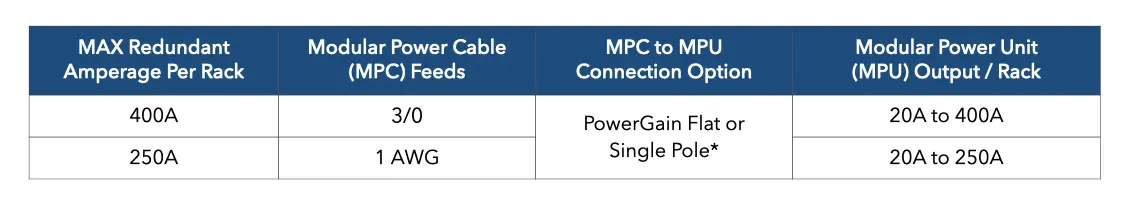

Select voltage & max amps per rack

Select from 3 modular power systems each with
a complete range of output options.

  • Select system voltage & maximum amperage.
  • MPUs available for AC or DC fed (ORv3) servers.
  • Up to 4 MPUs per rack position.
Systems & Output

Now Shipping

Coming Soon...

120/208V SERIES |

20A 120V (L5-20R)
30A 120V (L5-30R)
20A 208V (L6-20R)
30A 208V (L6-30R)
20A 120/208V 3PH (L21-20R)
30A 120/208V 3PH (L21-30R)
Up to 8.6 kW’s

208/240V 3-PHASE SERIES |

30A 208/240V 3PH (L15-30R)
50A 208/240V 3PH (CS8369)
60A 208/240V 3PH (460R9W)
Up to 17.2 kW’s

240/415V 3-PHASE SERIES |

20A 240/415V WYE 3PH
30A 240/415V WYE 3PH
60A 240/415V WYE 3PH
Up to 34 kW’s

Deliver power to each rack using UL2237 listed MPCs

  • 125A & 200A Hubbell Powergain flat connections.
  • Back-out (2) PIM screws slightly just to clear mounting flange. 1
  • Lift and remove the PIM. 23
  • Reverse this procedure to install a new PIM

Rapid installation

Each MPC is a direct run from the RPP to each rack location using a highly flexible cable and a connector designed for quick and secure placement. PowerTAP MPCs are secured to standard strut while a pluggable MPU can be added or removed in minutes.
  • Highly flexible Modular Power Cables at 1AWG or 3/0 size.
  • Less than half the weight of traditional bus systems.
  • Channel strut mount MPCs in minutes.
  • MPUs and MPCs mount direct to PowerTAP plates.
MPU7.001
MPU-8 cable drawing

Available MPCs

Select MPCs based on voltage and max amperage requirement. Place 4 MPCs per rack location for maximum flexibility.
  • 1 AWG MPCs providing up to 250A redundant per rack.
  • 3/0 MPCs providing up to 400A redundant per rack.
MPU-9 RPP diagram

Reliably deliver power today with flexibility to change-out late

Future-proof power output requirements with PowerTAP’s
compact size and large selection of output types.

  • Full offering of output options for each system.
  • Standard 4-position MPU mounting plate.
  • Pluggable connect-disconnect in minutes.
MPU-10 part number tables

Available MPUs

Select MPUs based on your system amperage and voltage. Utilize 1-4 MPUs per rack location. Maximum redundant power per rack as shown in 2X MPU column.

  • Choose from 125A 415, 200A 415V or 125A 208V systems
  • 480V systems available Q42026.
  • Robotically soldered in a USA automated facility.
MPU-11 technical drawings
MPU12.00111
MPU12.001

TAA Compliant &
Made in the USA

Automated build-to-order MPUs and
MPCs are made in the USA.

  • Modular Power Cables ship in 6-8 weeks.Ch
  • Modular Power Units ship in 8-10 weeks.*
  • Innovative order-to-ship process

Most models deliver in 8-10 weeks. Call for
special MPU stocking programs.

Rapid build-to-order

Specification

PowerTAP General Specifications
DESCRIPTIONModular overhead power system, 208V/415V 125A/200A 5-wire input, 20A–200A output, TAA compliant.
POWER125A 415V SYSTEM: 71.9KW PER FEED, 200A 415V SYSTEM: 115KW PER FEED, 125A 208V SYSTEM: 36KW PER FEED.
CABLE TYPECable assembly, modular power, TC-ER, high flex, gray, UL2237, TAA compliant, 1 AWG or 3/0, length specified by user.
CABLE PREPARATIONAdditional 10 ft of cable added to the selected length with jacket stripped and prepared for breaker connection.
CERTIFICATIONIntertek ETL certified to UL62368-1, CSA CS22.2, RoHS compliant. MPC is certified to UL2237.
MPU UNIT SIZES20A-100A: 5.75” WIDE X 16.0” TALL X 4.5” DEEP, 125A-200A: 6.50” WIDE X 16.0” TALL X 5.5” DEEP.
MATERIALHeavy-duty steel powder coat paint, black.
MOUNTINGMPU/MPC mounting plates: .060" flange. Use 1/4-20 strut hardware. Flange slots are on a 1-5/8" spacing matching strut width.
WARRANTY5 years from date of manufacture, repair or replacement.
OPERATING ENVIRONMENT0–50°C (32–122°F), 5–95% relative humidity, 0–10,000 ft (0–3000 meters) elevation.
STORAGE ENVIRONMENT-25–65°C (-13–149°F), 5–95% relative humidity, 0–10,000 ft (0–3000 meters) elevation.
