PowerTAP Modular Systems

Linear overhead power distribution from RPP to IT active gear

Reliably distribute up to 400A redundant to each active gear rack. PowerTAP overhead power distribution systems organize high amperage feeds in a single linear row for easier and more organized connection. PowerTAP systems are comprised of just two components: Modular Power Cables (MPCs) and Modular Power Units (MPUs). PowerTAP allows rapid low-cost deployment of a high amperage system with the flexibility for changing power at the rack. Combine with PowerLOK rPDUs, now up to 200A, that are built in an automated facility in the USA.

Available Systems

System-1: 250A 415V
10 MPUS Providing: 20A to 250A Redundant Per Rack
System-2: 400A 415V
12 MPUS Providing: 20A to 400A Redundant Per Rack
System-3: 250A 208V
12 MPUS Providing: 20A to 250A Redundant Per Rack

Overhead power to 400A

  • Up to 400A redundant per rack
  • 208V & 415V, 480V coming
  • High amperage in linear row
  • 20-200A output options
  • ORv3 output models
  • Power change-out in under 10 minutes

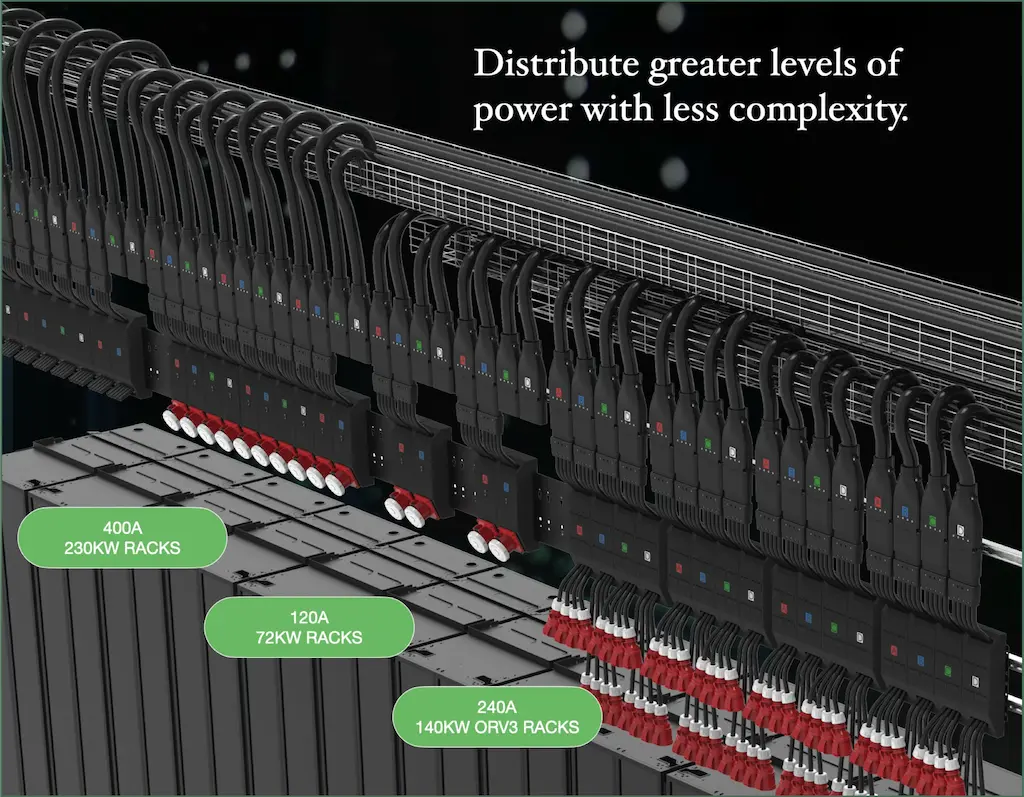

Distribute greater amperage per rack than traditional methods and without the complexity of staggered and layered tap connections.

power-tap-modular-systems
taa-compliant
tuv-na
iso
robotically-soldered-new
power-tap-mpu
taa-compliant
intertek
iso
robotically-soldered-new

Power options to 400A redundant for each rack location

PowerTAP MPUs are pluggable devices with a wide variety of outputs. Up to 4 units can be placed in a single row at each rack location.
  • Modular linear power to 250A or 400A per rack position
  • Installs quickly versus traditional overhead systems.
  • Eliminates congestion from staggered tap box outputs.
  • Made in USA, TAA compliant, UL62368-1, CSA C22.2.

Deliver rack power using UL817A listed MPCs

  • 125A & 200A Hubbell Powergain flat connections.
  • Modular cables ship UL certified to user specified lengths.
  • Packed and labeled for easy installation.
mpu-connection

Rapid installation

Installs in significantly less time than traditional overhead systems. Each MPC is a direct run from the RPP to each rack location using a highly flexible cable and high amperage connector designed for quick and secure placement. PowerTAP MPCs are secured to standard strut while a pluggable MPU can be added or removed in minutes.
  • Highly flexible Modular Power Cables at 1AWG or 3/0 size.
  • Less than half the weight of traditional overhead systems.
  • Channel strut mount MPCs in minutes.
  • MPUs and MPCs mount direct to PowerTAP plates.

Fast power changes at the rack

  • Cut power to MPU.
  • Remove MPU connections.
  • Remove set screw.
  • Lift off MPU and replace new.

Reliably deliver power today with flexibility to change-out later

Future-proof power output requirements with PowerTAP’s compact size and large selection of output types.

  • Full offering of output options for each system.
  • Standard 4-position MPU mounting plate.
  • Pluggable connect-disconnect in minutes.
mpu-mounting

Select voltage and max amperage per rack

Select from 3 modular power systems each with a complete range of output options. Select MPCs based on voltage and max amperage requirement. Place 4 MPCs per rack location for maximum flexibility.
  • MPUs available for AC or DC fed (ORv3) servers.
  • Up to 4 MPUs per rack position.
  • 3/0 MPCs providing up to 400A redundant per rack.
  • 1 AWG MPCs providing up to 250A redundant per rack.

Available MPUs

System-1: 250A 415V
20A MPUS 30A MPUS 60A MPUS 100A MPUS 125A MPUS
System-2: 400A 415V
20A MPUS 30A MPUS 60A MPUS 100A MPUS 125A MPUS 200A MPUS
System-3: 250A 208V
20A MPUS 30A MPUS 50A MPUS 60A MPUS 100A MPUS 125A MPUS

Available MPCs

Part Number Lengths Description Max Redundant
Amps Per Rack
System-1: 250A 415V MPC
PT5125F-XXTC -XX: 10-120 FT, 2FT INCREMENTS CABLE, MODULAR POWER, TC-ER, HIGH FLEX, GRAY, 5W, 1AWG, HBL5125C415T15, XXFT, UL817A, TAA 250A
System-2: 400A 415V MPC
PT5200F-XXTC -XX: 10-120 FT, 2FT INCREMENTS CABLE, MODULAR POWER, TC-ER, HIGH FLEX, GRAY, 5W, 3/0, HBL5200C415T15, XXFT, UL817A, TAA 250A
System-3: 250A 208V MPC
PT5125Y-XXTC -XX: 10-120 FT, 2FT INCREMENTS CABLE, MODULAR POWER, TC-ER, HIGH FLEX, GRAY, 5W, 1AWG, HBL5125C208T125, XXFT, UL817A, TAA 250A

Product Model Tables

Select MPUs based on your system amperage and voltage. Utilize 1-4 MPUs per rack location. Maximum redundant power per rack as shown in 2X MPU column.

System-1: 250A 415V MPU
Amperage (each) MPU Model MPU Output MPU kW 2X MPU kW
20A PT3200SB-C206A QTY (2) IEC 320R6 7.7 15.4
PT3200SB-C406A QTY (4) IEC 320R6 14.3 28.6
30A PT3300SB-C206A QTY (2) IEC 330R6 11.5 23.0
PT3300SB-C406A QTY (4) IEC 330R6 23.0 46.0
PT5300SB-C406A QTY (4) IEC 530R6 69.0 138.0
60A PT5600WB-C1A QTY (1) IEC 560R6 34.5 69.0
PT5600WB-C206A QTY (2) IEC 560R6 69.0 138.0
100A PT5100WB-C106A QTY (1) IEC 5100R6 57.5 115.0
125A* PT5125FB-C1A QTY (1) PG5125R415 71.9 143.8
PT5125FB-C106A QTY (1) PG5125C415 71.9 143.8
PT5125FBX-C1A QTY (1) PG5125R415, NO BRKR 71.9 143.8
System-2: 400A 415V MPU
20A PT3200SB-C206B QTY (2) IEC 320R6 7.7 15.4
PT3200SB-C406B QTY (4) IEC 320R6 14.3 28.6
30A PT3300SB-C206B QTY (2) IEC 330R6 11.5 23.0
PT3300SB-C406B QTY (4) IEC 330R6 23.0 46.0
PT5300SB-C406B QTY (4) IEC 530R6 69.0 138.0
60A PT5600WB-C1B QTY (1) IEC 560R6 34.5 69.0
PT5600WB-C206B QTY (2) IEC 560R6 69.0 138.0
100A PT5100WB-C106B QTY (1) IEC 5100R6 57.5 115.0
125A* PT5125FB-C1B QTY (1) PG5125R415 71.9 143.8
PT5125FB-C106B QTY (1) PG5125RC15 71.9 143.8
PT5125FBX-C1B QTY (1) PG5125R415, NO BRKR 71.9 143.8
200A* PT5200FB-C1B QTY (1) PG5200R415 115.0 230.0
PT5200FBX-C1B QTY (1) PG5200R415, NO BRKR 115.0 230.0

* 125A & 200A MPUs require a wider mounting plate PT6500-04M which is 26” in total width.

System-3: 250A 208V MPU
Amperage (each) MPU Model MPU Output MPU kW 2X MPU kW
20A PT6200NB-C2A QTY (2) NEMA L6-20R 6.0 12.0
PT2120NB-C2A QTY (2) NEMA L21-20R 11.5 23.0
30A PT6300NB-C2A QTY (2) NEMA L6-30R 10.0 20.0
PT2130NB-C2A QTY (2) NEMA L21-30R 17.2 34.4
PT1530NB-C2A QTY (2) NEMA L15-30R 20.0 40.0
50A PT8369CB-C2A QTY (2) CS8369C 28.8 57.6
60A PT4600WB-C1A QTY (1) IEC 460R9W 17.2 34.4
PT4600WB-C206A QTY (2) IEC 460R9W 34.4 68.8
100A PT4100WB-C106A QTY (1) IEC 4100R9W 28.8 57.6
125A* PT4125FB-C1A QTY (1) PG4125R250 36.0 72.0
PT4125FBX-C1A QTY (1) PG4125R250, NO BRKR 36.0 72.0

TAA Compliant & Made in the USA

Automated build-to-order MPUs and MPCs are made in the USA.

  • Modular Power Cables ship in 6-8 weeks.
  • Modular Power Units ship in 8-10 weeks*.
  • Innovative order-to-ship process

* Some models deliver in 4-6 days in limited quantity. Call for special MPU stocking programs.

taa-compliant-mpus
divider

General Specifications

PowerTap general specifications
PowerTap General Specifications
Description Modular overhead power system, 208V/415V 125A/200A 5-wire input, 20A-200A output, TAA compliant.
Power 125A 415V system: 71.9kW per feed, 200A 415V system: 115kW per feed, 125A 208V system: 36kW per feed.
Short Circuit Rating 10 kAIC for breaker versions, 300kAIC for fused versions. Some exceptions. See individual specification for details.
Cable Type Cable assembly, modular power, TC-ER, high flex, gray, UL817A, TAA compliant, 1AWG or 3/0, length specified by user.
Certification Intertek ETL certified to UL62368-1, CSA CS22.2, ROHS compliant. MPC is certified to UL817A.
MPU Unit Sizes 20A-100A: 5.75” wide x 16.0” tall x 4.5” deep, 125A-200A: 6.50” wide x 16.0” tall x 5.5” deep. See individual specification for details.
Material Heavy duty steel powder coat paint, black.
Mounting MPU/MPC mounting plates: .060” flange. Use 1/4-20 strut hardware. Flange slots are on a 1-5/8” spacing matching strut width.
Warranty 5-yr from date of manufacture, repair or replace.
Operating Environment 0-50C (32-122F), 5-95% relative humidity, 0-10,000ft (0-3000 meters) elevation.
Storage Environment -25-65C (-13-149F), 5-95% relative humidity, 0-10,000ft (0-3000 meters) elevation.
