A Better PDU from the Inside Out

For over 10,000 BUILD Model possibilities – contact a PowerLOK reseller.

PowerLOK has advantages not found on other Rack PDUs

  • Same day shipment of 32 different 20-30A models – 3x what other leading manufacturers offer.
  • Build your own rack PDUs that ship in 10 days.
  • C13/C19 locking with the greatest receptacle density.

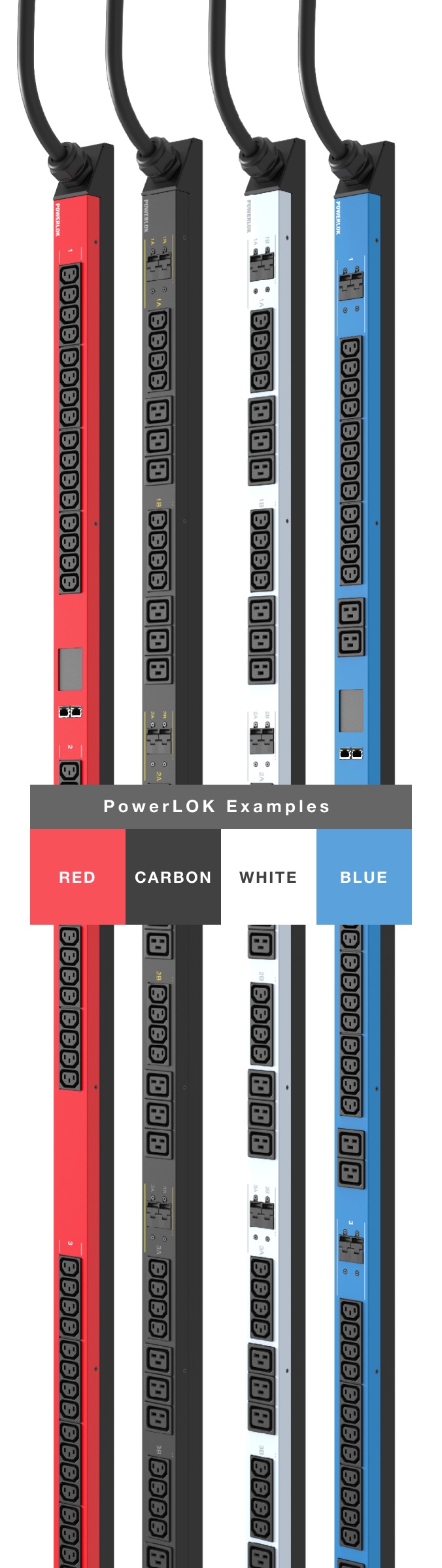

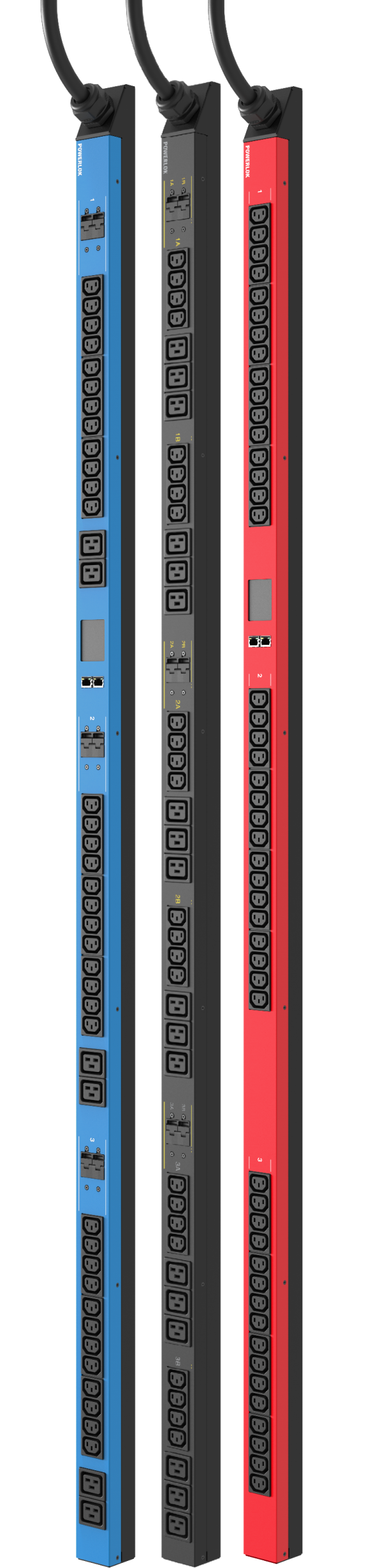

  • Choose from one of four colors at no additional cost.
  • 0.5% accuracy and a completely buttonless touch-screen display.

Evaluated to be 3X less likely to experience power connection failure. Steve Fairfax, mtechnology.

PowerLOK offers advantages not found on other Rack PDUs

  • Same day shipment of 32 different 20-30A models – 3x what other leading manufacturers offer.
  • Build your own rack PDUs that ship in 10 days. (Orders greater than 24 units.)
  • C13/C19 locking with the greatest receptacle density.
  • Choose from one of four colors at no additional cost.
  • 0.5% accuracy and a completely buttonless touch-screen display.

Evaluated to be 3X less likely to experience power connection failure. Steve Fairfax, mtechnology.

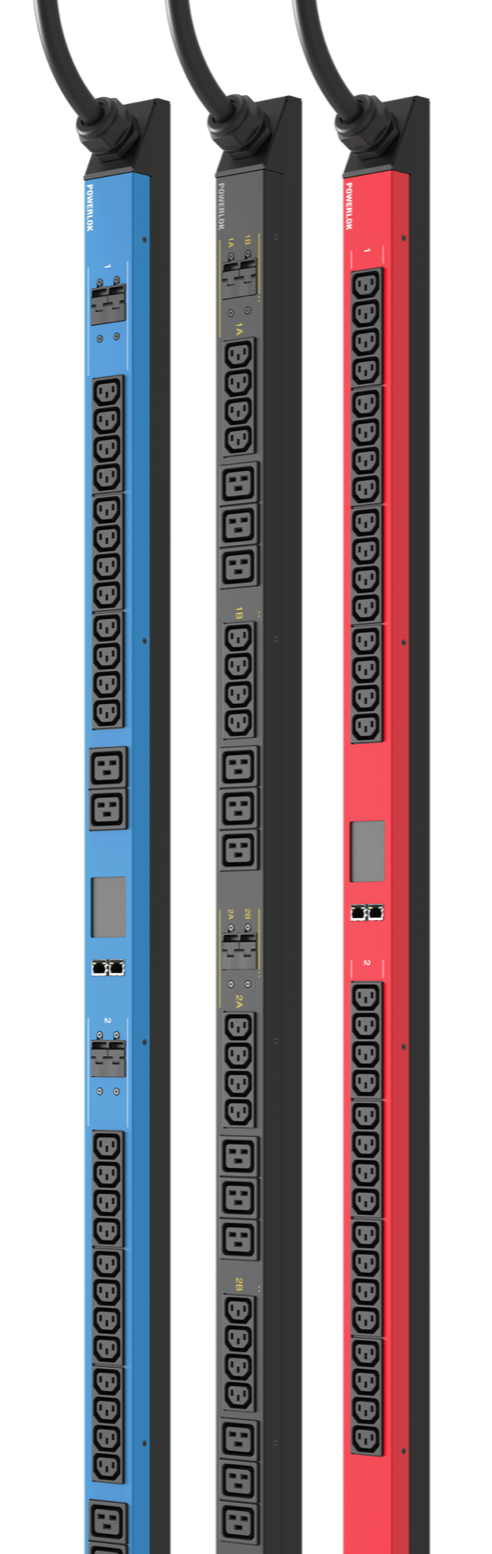

High-Quality Vertical Design and Angled Input Whip

Measuring only 2.18” wide x 2.0” deep for PDUs up to 60A 3PH, PowerLOK PDUs are more agile and lead the industry in receptacle density. PowerLOK’s input whip is angled toward the server rack exit to improve access to the back of servers. This also allows for greater length with more receptacles over PDUs with end cords.

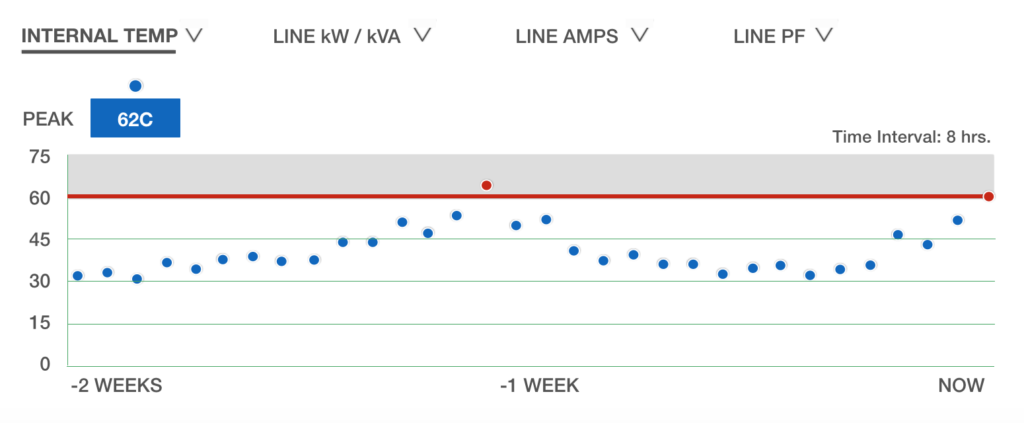

Internal Temperature Reporting

Rack PDU internal temperature monitoring communicates via SNMP, or you can browse to the PDU’s web server where alarm set-points can be updated to meet your requirements.

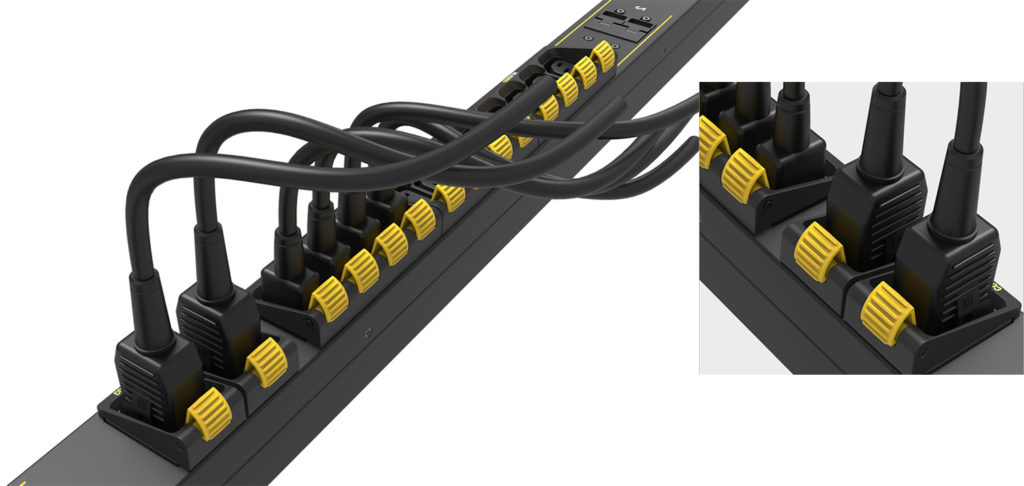

Universal Cord Locking

CordLOK works with your server cords, does not require you to sacrifice high receptacle density, and allows single hand insertion and removal of cords. CordLOK clicks when cord is fully inserted. To remove, simply roll wheel with your thumb while pulling on the cord. Available on Build Models.

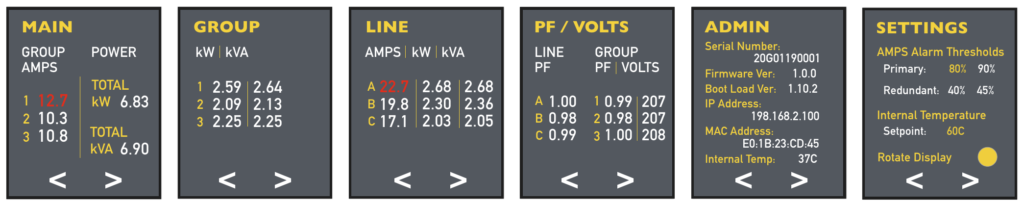

Advanced Monitoring & Touchscreen Display

PowerLOK has a more advanced and reliable total monitoring solution not found on other rack PDUs. A fully functional and highly visible touchscreen display eliminates failure prone push-buttons. PowerLOK PDUs can be daisy chained to reduce network port use. Alarms on the main unit display and in the web based software appear in red when alarms are present.
  • Simplified User Interface
  • 0.5% Monitoring Accuracy

PowerLOK rack PDUs are programmed at our factory to be network silent devices in your facility – allowing your management software to collect the precision rack PDU data.

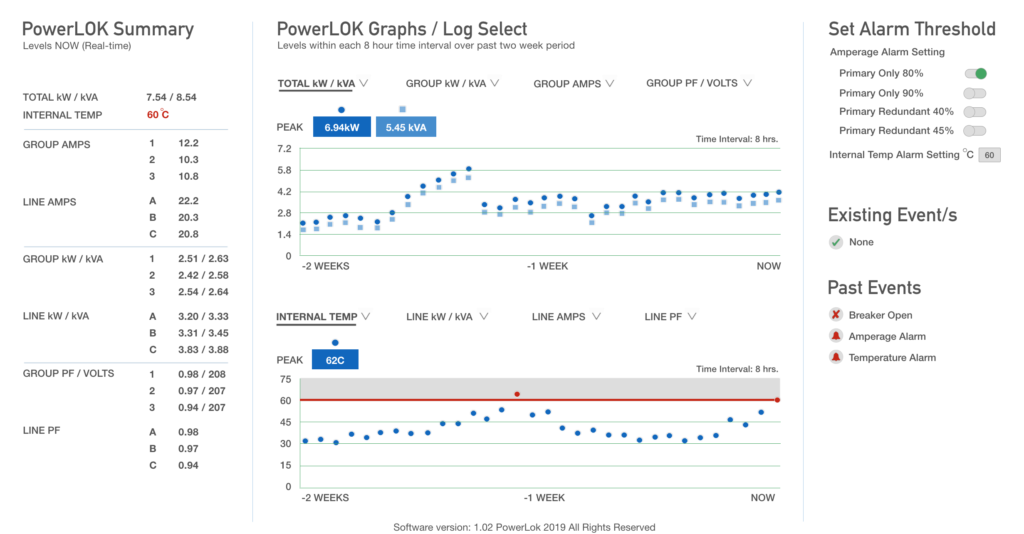

Embedded Web Server Simplifies Real-time and Historical Graphing

Monitoring Accuracy, Voltage: +/- 0.5% at nominal.

Monitoring Accuracy, Current: Within 0.5% from 1A to 30A. +/1% of measurement from 500mA to 30A.

Total Unit Monitoring: Aggregate (kWh, W, VA) plus Phase: A, B, C Line Currents, plus Group: 1, 2, 3 Monitoring (kWh, W, VA, PF, V, A).

Network Interface & Transport/Internet: Ethernet RJ-45 & TCP/IP v4, v6, RSTP Ethernet daisy chain capability.

Network Applications:

HTTP, HTTPS (SSL) Webserver.
SNMP-V1/V2c /V3 Network Management, SMTP Email.
DHCP for dynamic IP address request from a server.
DNS to resolve host names for email, NTP, and SNMP servers.

Building a Rack PDU

Build Models are assembled to order by selecting standard components in a few simple steps. For orders greater than 24 units.

Call Now

For orders greater than 24 units
Select where to buy or call 866-387-7896
Monday to Friday EDT 8am to 8pm
Sales Support sales@gateview.com

Build Models ship in 10-14 days.

10,000 +

Models Available

PowerLok Vertical Rack PDU

Build Model NumberPL01A04A07C-201
Power Type20A 120/208V WYE 3PH
PDU Length (in)72
PDU ColorCARBON
Whip Length (ft)7
C13 Quantity36
C19 Quantity6
CordLok (for C13/C19)YES
120V 5-15R Quantity0
Power MonitoringREMOTE & UNIT DISPLAY
Power Type & Plug
20A 208V 1PH, L6-20P
20A 120/208V WYE 3PH, L21-20P
20A 240/415V WYE 3PH, L22-20P
20A 240/415V WYE 3PH, IEC309 20P
30A 208V 1PH, L6-30P
30A 120/208V WYE 3PH, L21-30P
30A 240/415V WYE 3PH, L22-30P
30A 240/415V WYE 3PH, IEC309 30P
30A 208/240V DELTA 3PH, L15-30P
50A 208V/240 DELTA 3PH, CS8365 PLUG
60A 208/240V DELTA 3PH, IEC309 60P
Whip Length
3 FT
4 FT
5 FT
6 FT
7 FT
8 FT
9 FT
10 FT
PDU Length
36"
41"
46"
72"
82"
92"
PDU Color
RED
WHITE
BLUE
CARBON
C13 Qty.
6
12
24
30
32
36
48
C19 Qty.
4
6
12
18
24
30
36
5-15R Qty.
0
1
2
CordLOK
YES
NO
Monitoring
NONE
REMOTE COMM ONLY
REMOTE & UNIT DISPLAY

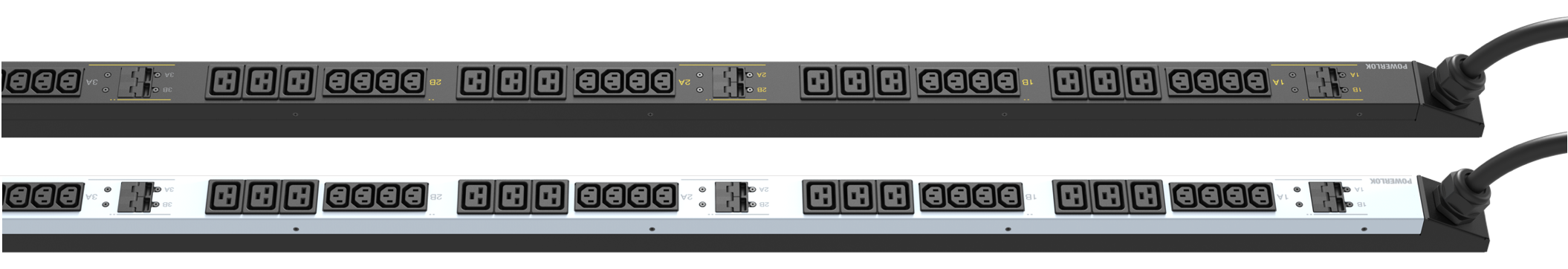

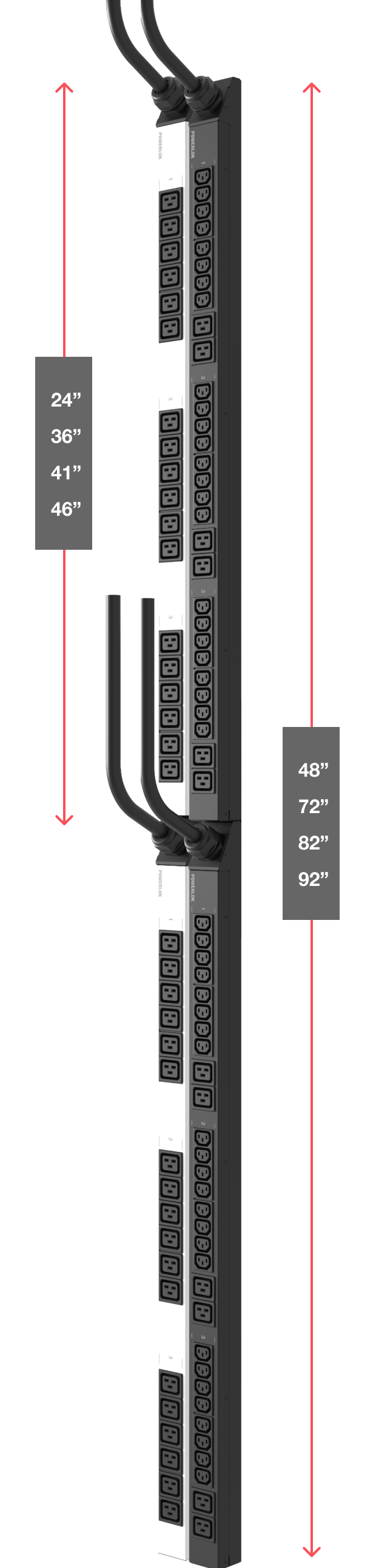

Double or Triple Your Power in a Single PDU Footprint with Half-height and Third-Height PDUs

  • 24”, 36”, 41” and 46” lengths available
  • Many power types available including 30A Delta and 30A Wye 3PH
  • Keyslot buttons on 12.25” spacing for easy rack mounting
  • Optional joining bracket available allowing you to place as one PDU
  • Multi-packed to save packaging waste and allow rapid deployment
  • Use PowerLOK’s free color options to organize power feeds
  • Chose your whip lengths – contact us for lengths over 12 ft.
  • Available in 10-14 days based on quantity at time of order
  • Machine soldered and assembled in the USA for 3X greater reliability

Achieve 52 kW in a single rack PDU footprint with a 2.18” width and 2.00” deep chassis.

EXAMPLES OF TOTAL POWER WHEN JOINING PDUS

Power Type*Join Three
24” Length PDUs
Join Two
36” or 41” Length PDUs
30A 208V 1PH (5.0 kW)15.0 kW 10.0 kW
20A 120/208V WYE 3PH (5.7 kW) 17.1 kW 11.4 kW
30A 120/208V WYE 3PH (8.6 kW) 25.8 kW 17.2 kW
20A 240/415V WYE 3PH (11.5 kW) 34.5 kW 23.0 kW
30A 240/415V WYE 3PH (17.2 kW) 51.6 kW 34.4 kW
50A 208/240V DELTA 3PH (14.4 kW) 28.8 kW
60A 208/240V DELTA 3PH (17.2 kW) 34.4 kW

* Other power types and lengths available

Electronic Document Signature

To ensure customers get what they want, every shipped PowerLOK order has a prior approved specification document that is electronically signed by the customer.

MONITORED Rack PDU Specification

CUSTOMER SIGNATURE

____________________________________________________

Customer agrees to this specific PowerLOK configuration
PowerLOK Configuration
Build Model: PL01A03A10C-200

RACK PDU, MONITORED, 72”, 20A
120/208V 3PH (5.7 kW), 48-C13,
10FT WHIP, NEMA L21-20P, CARBON
POWER20A 120/208V 3PH 5.7 kW
UNIT LENGTH72 IN
PLUB TYPENEMA L21-20P
WHIP LENGTH10 FT
RECEPTACLES48-C13
CORDLOKNONE
MONITORINGDISPLAY & ETHERNET COMM
120V TECH POWERNONE
COLORCARBON

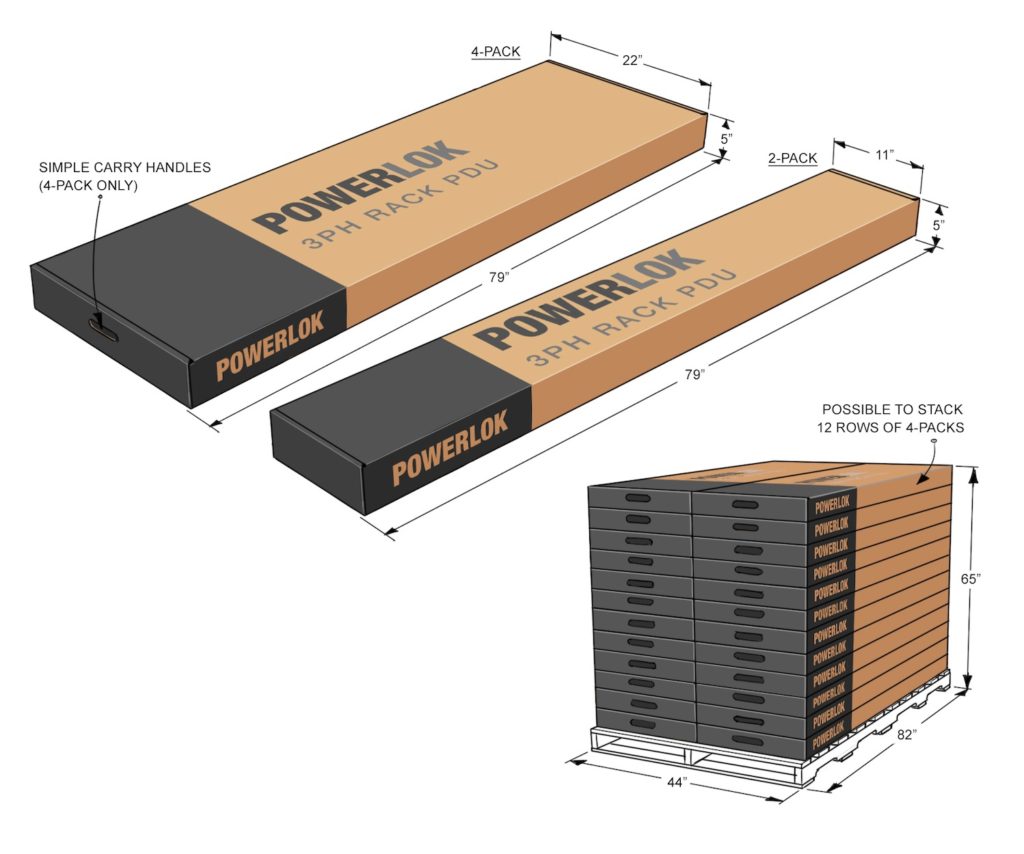

Multi-pack Packaging

Reduces shipping costs & packaging waste

  • Quickly remove a unit and deploy.
  • 4 Rack PDUs in a 22” x 5” package.
  • 96 PDUs per pallet at 65” stack height.
  • 2-pack and single-pack also available.
